You are here：home >> products >> Indoor-high-voltage-vacuum-circuit-breaker-series >> Within VS1-12 solid sealing indoor high voltage vacuum circuit breaker

Indoor-high-voltage-vacuum-circuit-breaker-series

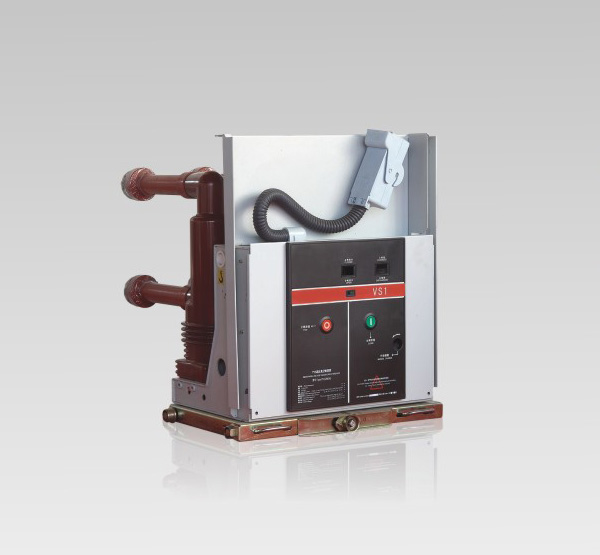

Within VS1-12 solid sealing indoor high voltage vacuum circuit breaker

Oroduct Overview

ZHE JIANG BOGUANG ELECTRICAL TECHNOLOGY CO.,LTD. has been committed to product quality control and enterprise management "manufacturing high-quality goods, integrity service" is always our commitment to the customer. The company produces crystal sales of customers is the main power supply bureau, the company (hereafter called sacsc), mechanical and electrical equipment company, best-selling domestic provinces and cities autonomous regions, many times by the national key factory, export Europe and Africa southeast Asia etc, in use process to get the user high praise!

Outline

Vacuum circuit breaker is indoor high voltage switchgear VS1-12 type solid seal (VBM7), rated voltage 12 kV, frequency 50Hz three-phase power system protection and control of electrical appliances as, due to the special vacuum breaker advantages, especially for applications that require frequent operation at rated current or short circuit current breaking several places.

VS1-12 type solid seal (VBM7) fixed-mounted vacuum circuit breaker is mainly used for fixed switchgear, the circuit breaker can be used alone, but also for ring network power supply, box-type variable or non-standard power supply system.

Performance advantages

The main insulation products made of solid insulation, vacuum interrupter whole cast in epoxy insulation tube meat, this structure greatly improves the insulating properties of the product. Can meet the humidity and other environmental conditions of high altitude requirements.

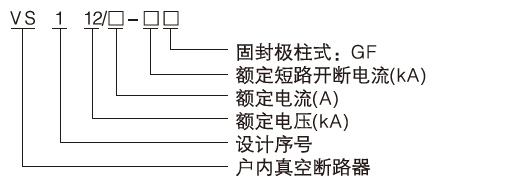

Type Meaning
